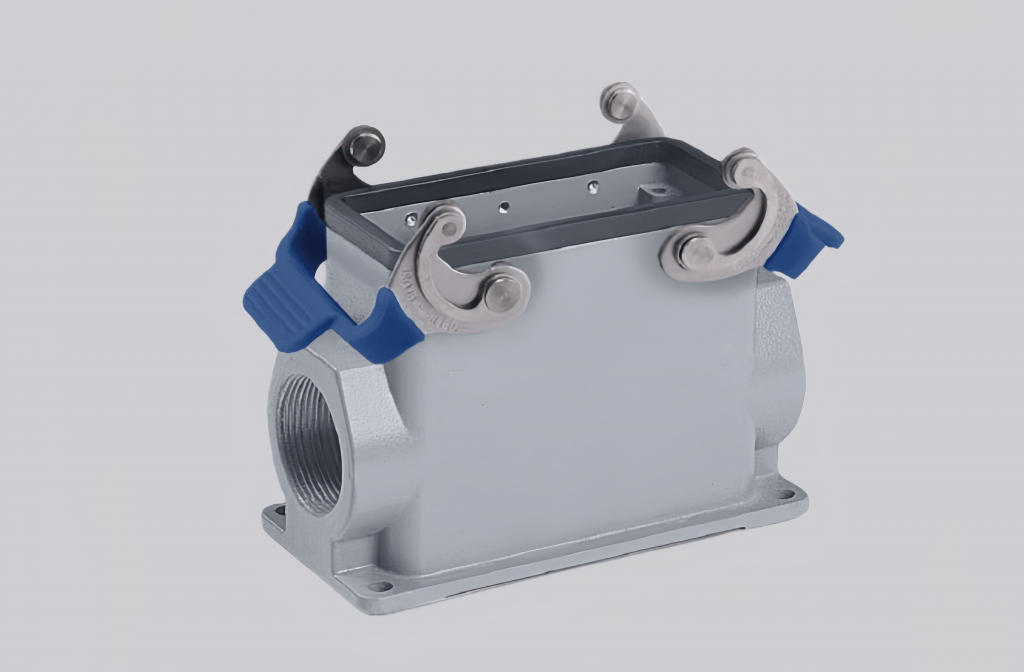

The H16B-SFH-2L/SC-2PG29 is designed for industrial connector systems that require strong locking performance and flexible handling of large cables. It features a sealed lower housing with a double locking structure, providing secure and stable connections in environments affected by vibration and mechanical stress. The side entry with dual PG29 threads allows efficient routing of multiple large-diameter cables.
Constructed from die-cast aluminum, the housing offers high mechanical strength and long-term durability for demanding industrial applications. Its powder-coated surface in RAL 7037 field gray improves resistance to corrosion and surface wear. Integrated sealing elements help protect internal components from dust and external influences, supporting dependable operation.
The H16B-SFH-2L/SC-2PG29 is well suited for automation equipment, heavy machinery, and industrial control systems. With its robust design, double locking mechanism, and dual large-cable entry configuration, it provides a practical solution for installations that require reliability, safety, and efficient cable management.

Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
