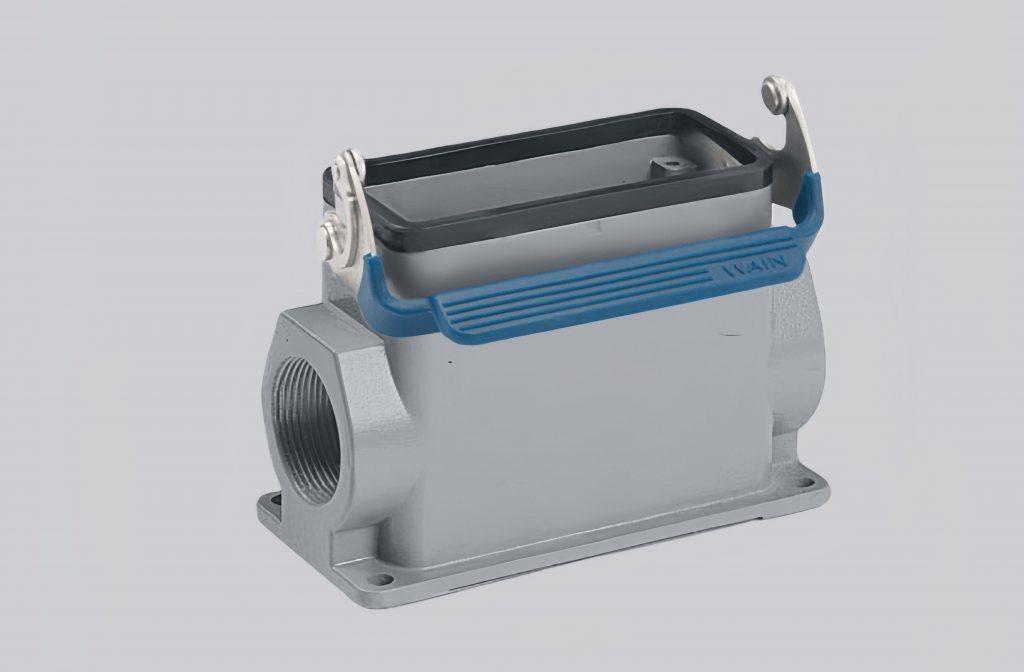

The H16B-SFH-1L/SC-PG29 is a heavy-duty connector housing engineered for secure and stable electrical connections in demanding industrial applications. It features a sealed lower housing design combined with a single locking system, ensuring reliable mating and resistance to vibration and mechanical stress. The side cable outlet with PG29 thread allows convenient routing of larger-diameter cables.
Constructed from high-quality die-cast aluminum, the housing provides excellent mechanical strength, impact resistance, and corrosion protection. The powder-coated surface in RAL 7037 field gray enhances durability in harsh environments. An NBR sealing system effectively prevents the ingress of dust and moisture, helping to maintain consistent electrical performance over long operating periods.
The H16B-SFH-1L/SC-PG29 is well suited for industrial automation, machinery, and control cabinet applications. Its robust structure, dependable locking mechanism, and compatibility with larger cable sizes make it an ideal choice for installations requiring high reliability, safety, and long-term performance in challenging conditions.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG29 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
