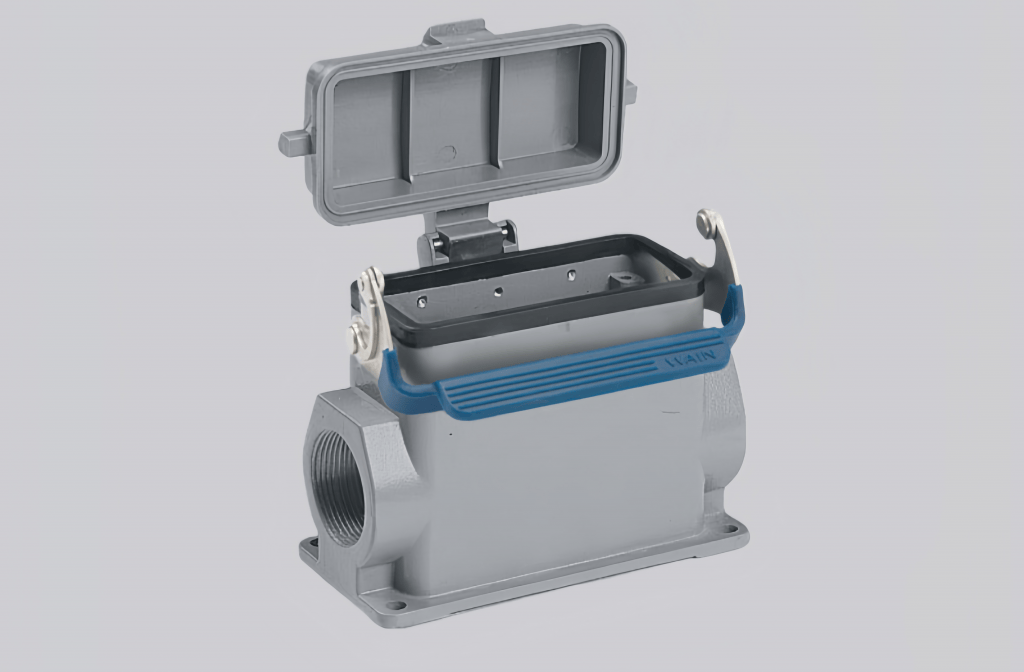

The H16B-SFH-1L/SC-MCV-2M32 is a heavy-duty connector housing engineered for reliable electrical connections in demanding industrial environments. It features a sealed lower housing with a single locking system, ensuring secure mating and stable performance under vibration and mechanical stress. The side outlet design with dual M32 metric threads allows flexible wiring and efficient routing of large-diameter cables.
Constructed from high-quality die-cast aluminum, the housing offers excellent mechanical strength, impact resistance, and corrosion protection. The powder-coated surface in RAL 7037 field gray enhances durability against harsh operating conditions. NBR sealing elements effectively prevent dust and moisture ingress, helping to maintain consistent electrical performance and extend service life.
The H16B-SFH-1L/SC-MCV-2M32 is well suited for industrial automation, heavy machinery, and control system applications. Its robust structure, reliable locking mechanism, and practical dual-cable outlet configuration make it an ideal choice for installations that require high reliability, safety, and efficient cable management.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
