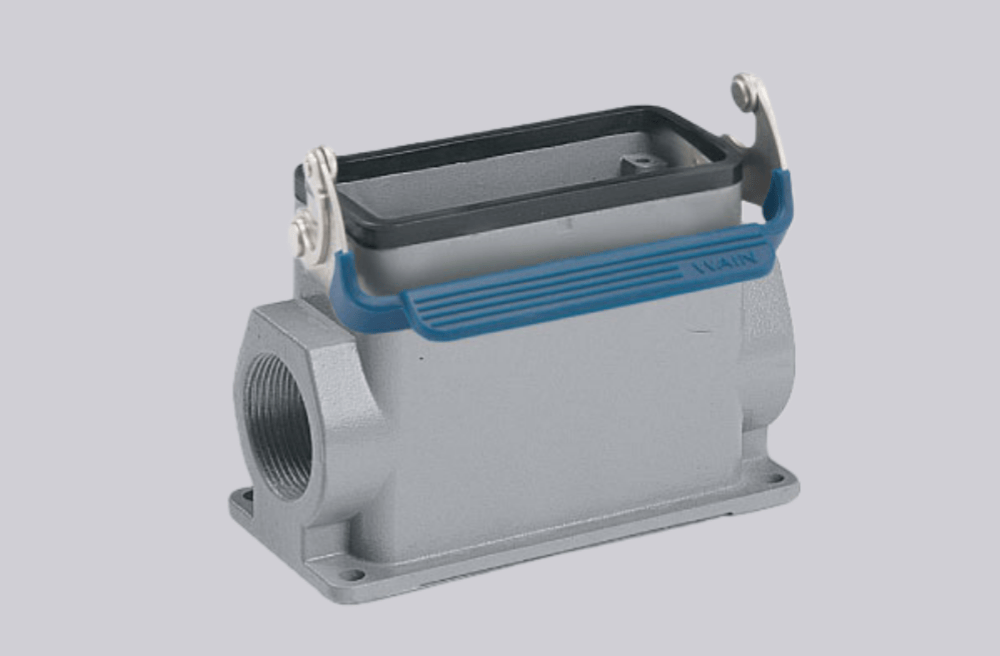

The H16B-SFH-1L/SC-M32 is designed for industrial connector applications that require a sealed housing structure and reliable mechanical performance. Using a 16B housing format, it provides a secure mounting solution while supporting efficient installation in industrial equipment and control cabinets. The SFH design focuses on protecting internal connections and maintaining stable operation in demanding environments.
The housing is manufactured from robust die-cast aluminum, offering high structural strength and resistance to industrial stress. A powder-coated RAL 7037 field gray finish enhances durability and corrosion resistance over long service life. The M32 threaded cable entry accommodates larger cable diameters, making it suitable for higher-capacity power or signal transmission.
A precisely engineered locking mechanism ensures secure connector engagement and dependable mating performance. Integrated sealing elements help prevent dust and moisture ingress, contributing to consistent operational reliability. The H16B-SFH-1L/SC-M32 is well suited for automation systems, machinery interfaces, and industrial electrical installations requiring sealed protection, durability, and dependable connector housing performance.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
