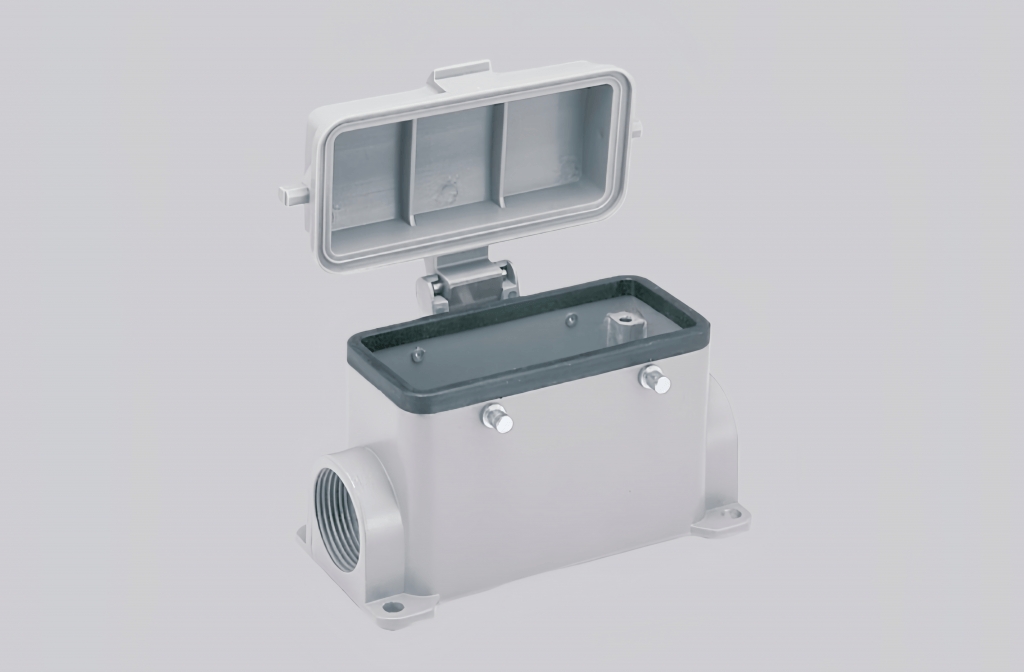

The H16B-SF-4B-MCV-2M25 is a heavy-duty rectangular connector housing designed to deliver reliable electrical connections in demanding industrial environments. Built in the standard 16B size, it provides strong mechanical protection and ensures stable performance for long-term operation.
This version features a sealed lower housing with a side outlet design and dual M25 threaded cable entries, and is equipped with metal cable clamps (MCV). The 2M25 configuration allows flexible cable routing and effective strain relief, while maintaining excellent protection against dust and moisture. The secure locking structure ensures resistance to vibration and mechanical stress.
Manufactured from high-quality die-cast aluminum with a durable surface treatment, the H16B-SF-4B-MCV-2M25 offers outstanding mechanical strength and corrosion resistance. It is widely used in industrial automation, machinery, control cabinets, and power distribution systems where high safety, stability, and efficient cable management are required.

Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
