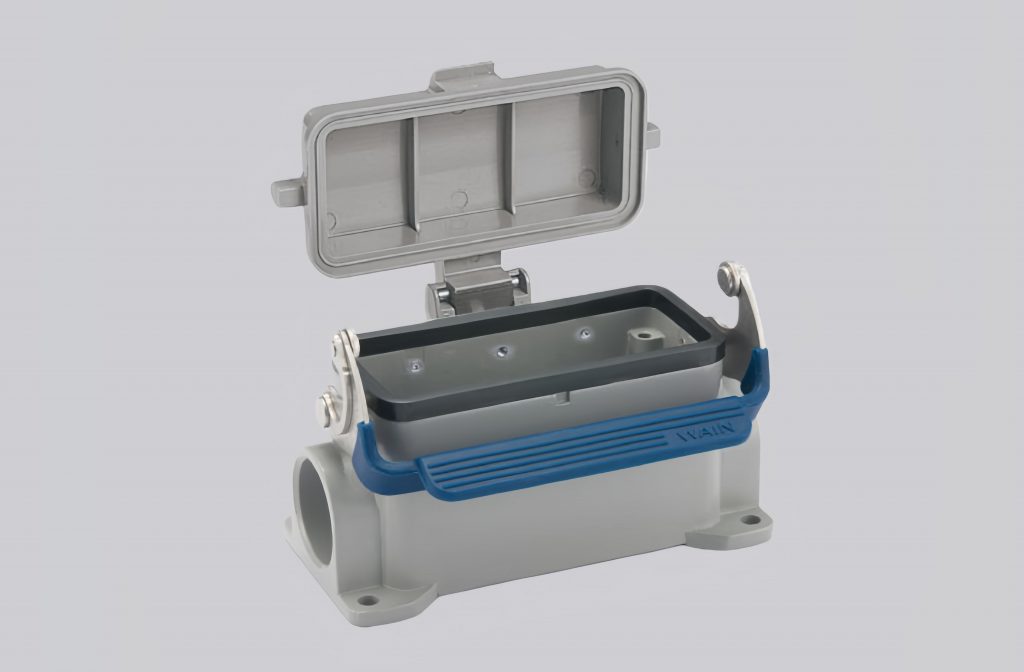

The H16B-SF-1L/SC-MCV-PG21 is designed for industrial connector installations where reinforced housing structure and flexible cable entry are required. Featuring a 16B housing format, it offers a compact yet stable solution for secure connector mounting in automation equipment and industrial control systems. The MCV design enhances mechanical strength, helping protect internal connections against vibration and external stress.
Manufactured from durable die-cast aluminum, the housing delivers reliable structural integrity and long service life in demanding environments. A powder-coated RAL 7037 field gray finish improves resistance to corrosion and surface wear. The PG21 threaded cable entry supports commonly used cable standards, allowing efficient and adaptable wiring.
A precisely engineered locking mechanism ensures secure connector engagement and smooth mating performance. Integrated sealing elements help reduce dust and moisture ingress, contributing to consistent operational reliability. The H16B-SF-1L/SC-MCV-PG21 is suitable for industrial automation systems, machinery interfaces, and electrical installations requiring compact design, reinforced protection, and dependable connector housing performance.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
