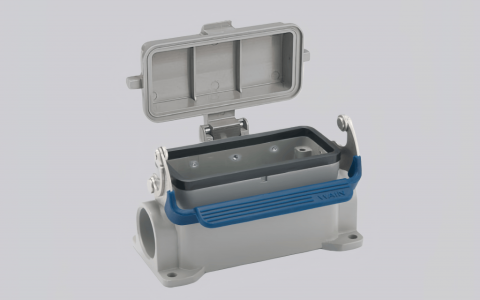

The H16B-SF-1L/SC-MCV-2M25 is designed for heavy-duty industrial connector applications that require reinforced housing protection and dual cable entry capability. Built on a 16B housing platform, it provides a compact yet stable solution for secure connector installation in industrial equipment and control systems. The MCV structure enhances mechanical strength and helps protect internal connections from external stress and vibration.
The housing is manufactured from high-quality die-cast aluminum, ensuring excellent rigidity and long-term durability in demanding environments. Its powder-coated RAL 7037 field gray finish offers reliable resistance to corrosion and surface wear. Equipped with two M25 threaded cable entries, the housing supports dual cable routing, improving wiring flexibility and system layout efficiency.
A robust locking mechanism ensures consistent connector engagement and safe operation during repeated mating cycles. Integrated sealing components help limit dust and moisture ingress, supporting dependable performance over time. The H16B-SF-1L/SC-MCV-2M25 is ideal for automation equipment, industrial machinery, and electrical control systems requiring strength, flexibility, and reliable housing protection.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
