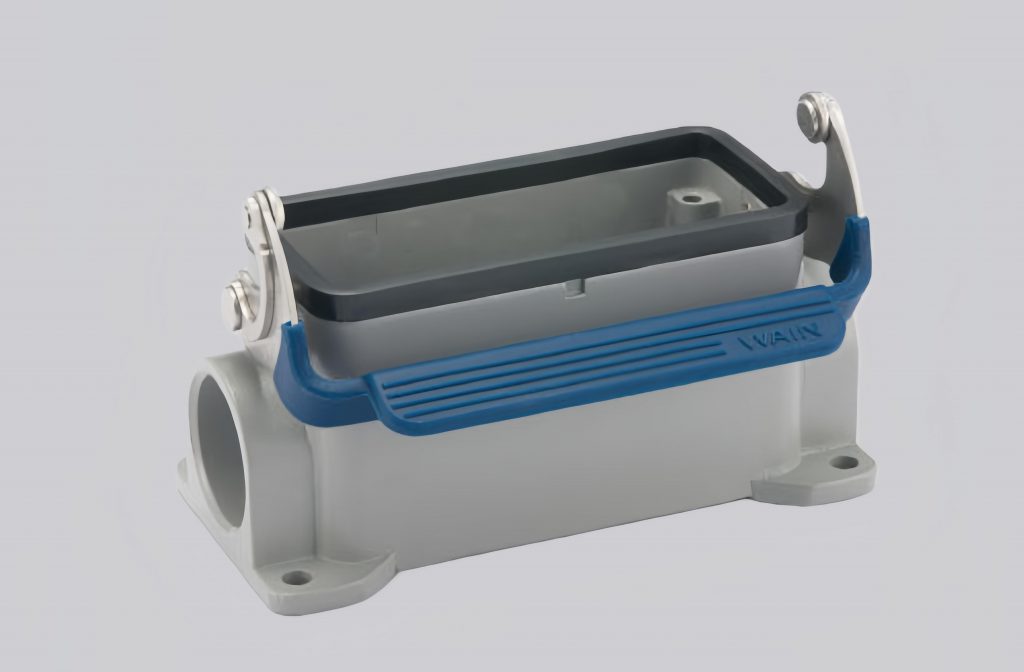

The H16B-SF-1L/SC-M25 is designed to provide a practical and reliable housing solution for heavy-duty industrial connector installations. Using a 16B housing format, it supports stable connector mounting while allowing efficient use of space in control panels and electrical enclosures. The structure is optimized for straightforward installation and dependable long-term operation.
Manufactured from robust die-cast aluminum, the housing offers strong mechanical support and resistance to industrial stress. Its powder-coated RAL 7037 field gray surface improves durability and helps protect against corrosion and surface wear. The M25 threaded cable entry supports standard industrial cable sizes, enabling neat and organized wiring layouts.
A precisely engineered locking interface ensures secure connector engagement and reliable mating performance. Integrated sealing components help reduce dust and moisture ingress, supporting consistent electrical performance. The H16B-SF-1L/SC-M25 is well suited for automation systems, machinery equipment, and industrial electrical applications where reliability, compact design, and ease of installation are essential.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
