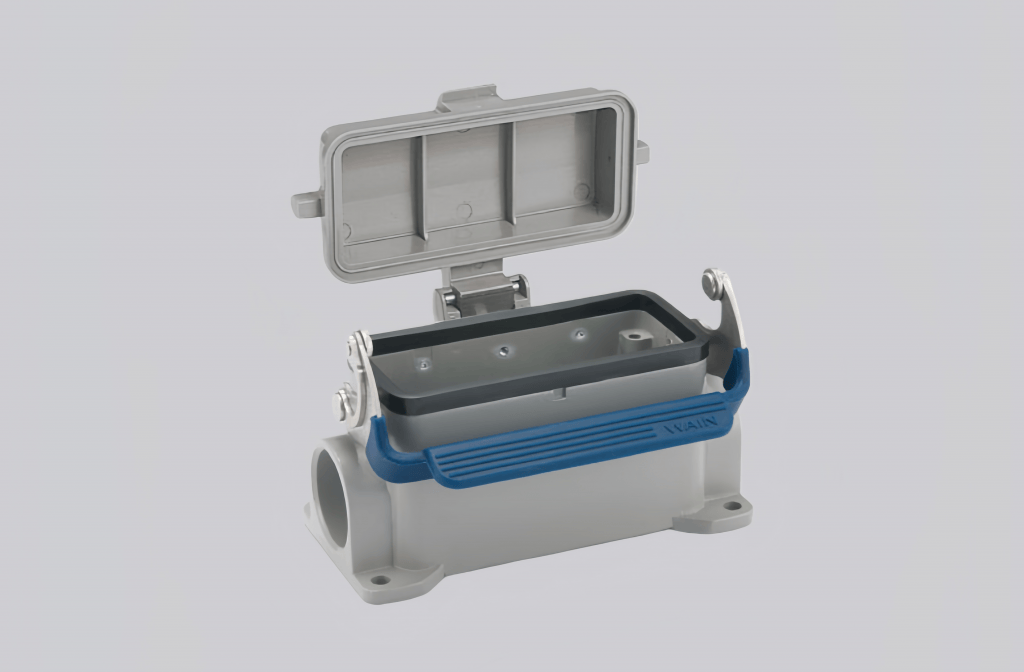

The H16B-SF-1L/SC-CV-2PG21 is designed for heavy-duty industrial connector applications that require multiple cable entries and enhanced housing protection. Featuring a 16B housing format, it offers a well-balanced structure that supports stable installation in space-constrained industrial equipment. The reinforced CV design improves impact resistance and helps protect internal connector components under demanding operating conditions.
The housing is manufactured from die-cast aluminum, providing solid mechanical strength and structural reliability for long-term industrial use. A powder-coated RAL 7037 field gray finish enhances resistance to corrosion and surface wear in harsh environments. Equipped with two PG21 threaded cable entries, the housing allows flexible multi-cable routing and simplifies system expansion and on-site installation.
A reliable locking mechanism ensures secure connector engagement, while integrated sealing features help reduce the influence of dust and moisture. The H16B-SF-1L/SC-CV-2PG21 is suitable for industrial automation equipment, machinery systems, and electrical control applications requiring durability, flexibility, and dependable connector housing performance.
Technical Data
| Series | Classic regular housing |
| Specifications | 16B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
