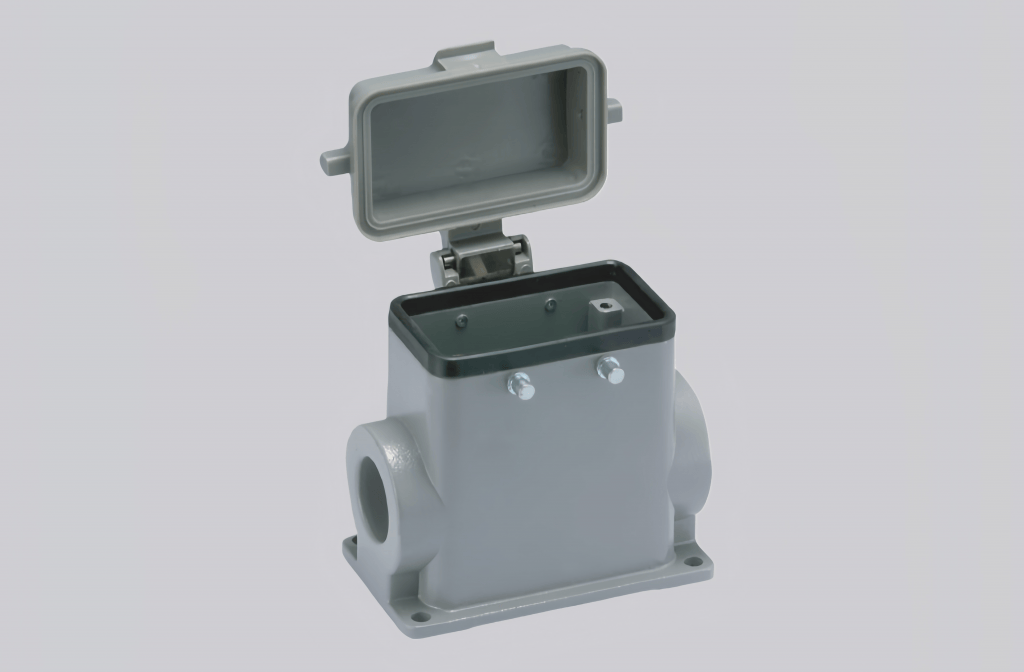

The H10B-SFH-4B-MCV-2PG21 is a robust sealed lower housing designed for heavy-duty industrial connector applications. Belonging to the classic regular housing series, it features a 10B size configuration and a practical side outlet design, making cable routing flexible and efficient in confined installation spaces. The housing is manufactured from high-strength die-casting aluminum and finished with durable powder coating in RAL 7037 field gray, providing excellent corrosion resistance and long service life in harsh environments.
Equipped with a dual locking system, the housing ensures secure and reliable connections even under vibration and mechanical stress. The metal elastic interlocking mechanism further enhances stability and ease of assembly. Two PG21 cable entries offer improved adaptability for multi-cable installations. NBR sealing elements deliver dependable protection against dust and moisture, supporting reliable performance in industrial automation, machinery, and power distribution applications.
Overall, the H10B-SFH-4B-MCV-2PG21 combines durability, safety, and installation flexibility, making it an ideal solution for demanding industrial connector systems.
Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | PG21 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
