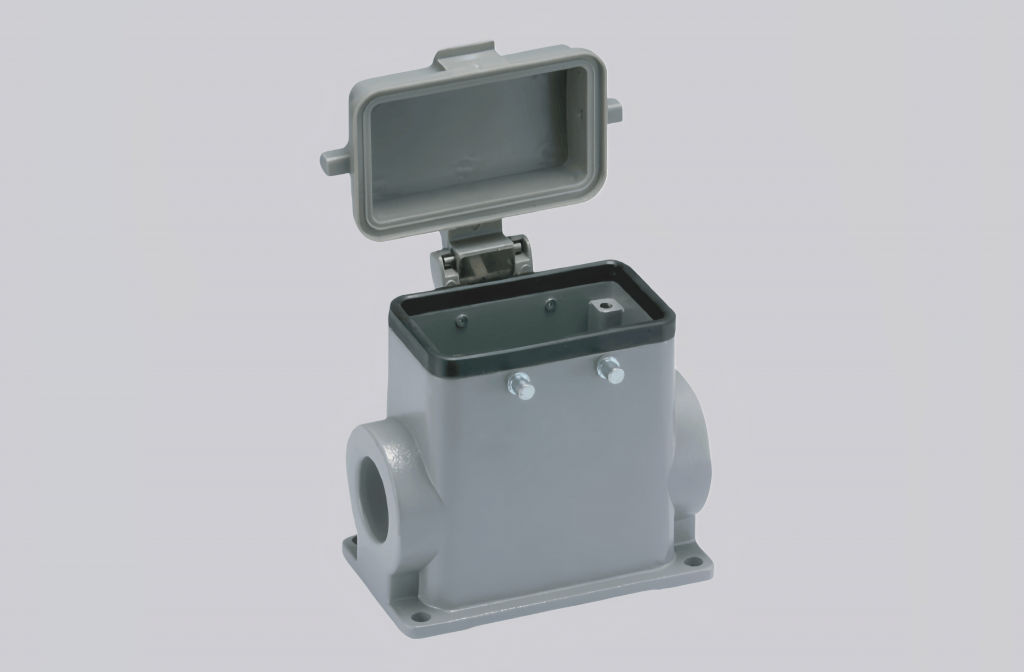

The H10B-SFH-4B-MCV-2M25 is a robust heavy-duty connector housing designed to deliver secure and reliable connections in harsh industrial environments. With a sealed lower housing and side outlet configuration, it provides effective protection against dust, moisture, and mechanical stress, ensuring stable performance in demanding operating conditions.
Constructed from high-strength die-cast aluminum, the housing is treated with a durable powder-coated finish in RAL 7037 field gray for excellent corrosion resistance and long service life. The dual M25 threaded cable entries allow flexible cable routing while maintaining a tight seal through high-quality NBR sealing components. The MCV metal cover and metal elastic interlocking mechanism enhance structural strength and provide strong resistance to vibration.
The H10B-SFH-4B-MCV-2M25 is ideal for industrial automation, machinery manufacturing, control cabinets, and power distribution systems. Its solid construction, reliable sealing performance, and easy installation make it a dependable heavy-duty connector housing solution for applications requiring durability, safety, and flexibility.
Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
