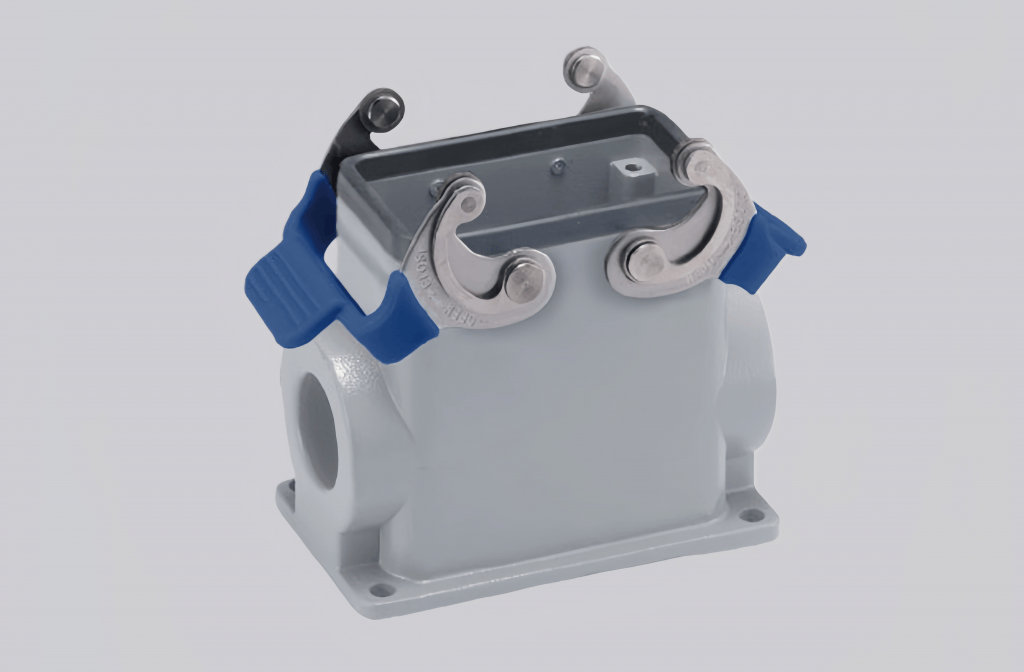

H10B-SFH-2L/SC-M25 is a sealed lower housing designed for heavy-duty industrial connector applications where high reliability and strong environmental protection are required. With its standard 10B size and reinforced structure, it is ideal for use in automation equipment, control panels, and industrial machinery operating in demanding conditions.
The housing is manufactured from high-quality die-casting aluminum and features a metal protective cap, providing excellent mechanical strength, impact resistance, and long-term durability. Its powder-coated surface in RAL 7037 field gray enhances corrosion resistance and ensures a professional industrial appearance. A dual locking mechanism ensures secure mating and stable performance, even under vibration and continuous operation.
Equipped with an M25 threaded side outlet, the H10B-SFH-2L/SC-M25 supports larger cable diameters and flexible cable routing. The integrated NBR sealing system effectively protects against dust and moisture, ensuring reliable operation and extended service life in harsh industrial environments.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
