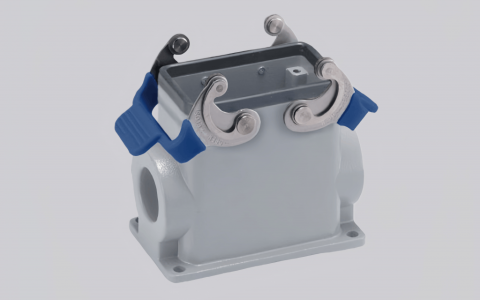

H10B-SFH-2L/SC-2M25 is a sealed lower housing designed for heavy-duty industrial connector applications that require maximum reliability and enhanced cable management. With its standard 10B size and reinforced construction, it is well suited for automation systems, control cabinets, and industrial machinery operating in harsh environments.
Manufactured from high-quality die-casting aluminum and equipped with a robust metal protective cap, the housing offers excellent mechanical strength, impact resistance, and long-term durability. The powder-coated surface in RAL 7037 field gray provides superior corrosion protection and a professional industrial appearance. A dual locking mechanism ensures secure mating and stable performance, even under vibration and continuous operation.
Featuring two M25 threaded side outlets, the H10B-SFH-2L/SC-2M25 allows dual cable entry and supports larger cable diameters for complex wiring layouts. The integrated NBR sealing system effectively protects against dust and moisture, ensuring dependable operation and extended service life in demanding industrial conditions.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
