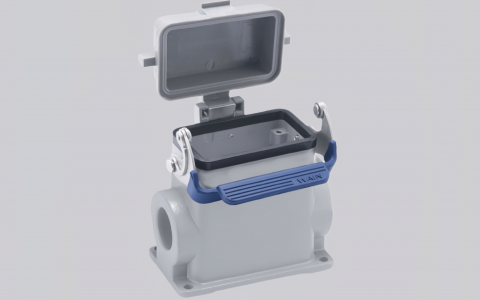

The H10B-SFH-1L/SC-CV-2M32 is a heavy-duty connector housing designed for industrial applications that demand high cable capacity, flexible routing, and enhanced interface protection. Its robust die-cast aluminum construction delivers excellent mechanical strength and long-term durability, ensuring reliable operation in harsh environments with vibration and continuous mechanical load.
This housing features a side cable outlet, dual M32 threaded cable entries, and an integrated protective cover, allowing multiple large-diameter cable configurations while safeguarding the connector interface when not connected. The single locking mechanism provides secure and stable mating, helping maintain consistent connection performance during operation. A high-quality surface treatment improves resistance to corrosion, dust, and moisture.
With its functional layout and industrial-grade design, the H10B-SFH-1L/SC-CV-2M32 is well suited for automation systems, control cabinets, and heavy machinery installations. It supports efficient installation, protects internal contacts, and ensures stable power and signal transmission, making it a dependable solution for demanding industrial connectivity applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M32 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
