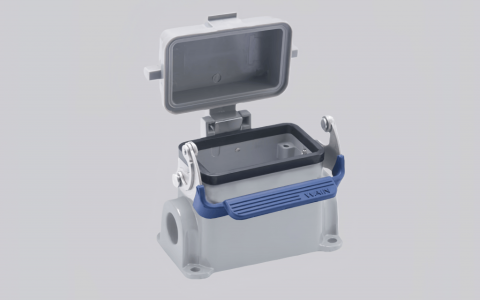

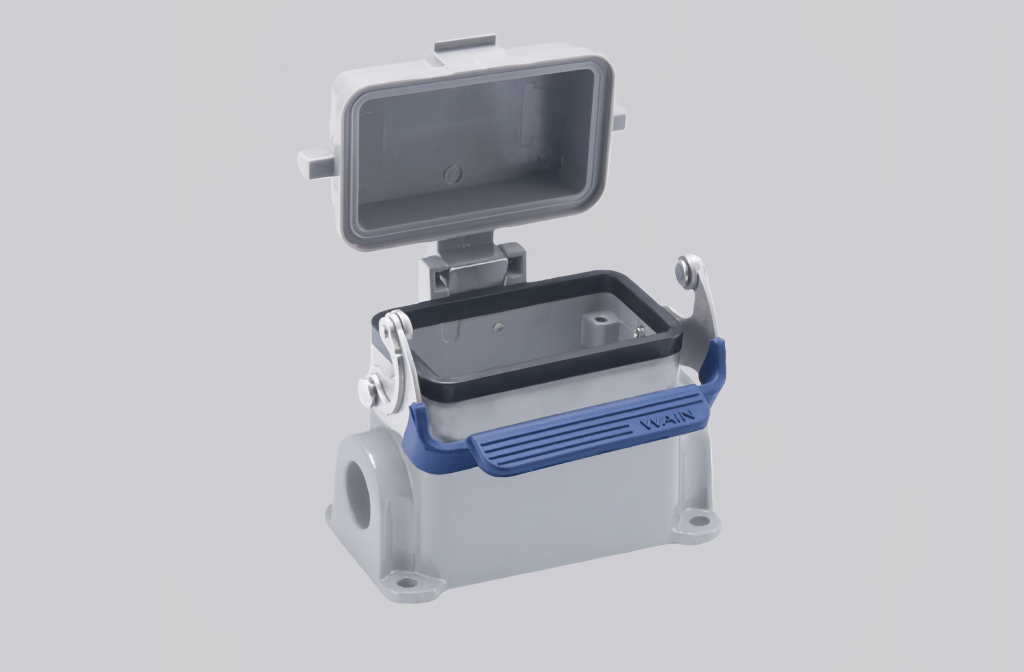

The H10B-SF-1L/SC-MCV-2PG16 is a heavy-duty connector housing designed for industrial applications that require flexible cable entry combined with enhanced interface protection. Its robust die-cast aluminum construction delivers high mechanical strength and long-term durability, ensuring reliable performance in demanding operating environments.
This housing features a side cable outlet, dual PG16 threaded cable entries, and a metal protective cover, allowing multiple cable routing options while effectively shielding the connector interface when not connected. The single locking mechanism ensures secure and stable mating, while the surface-treated housing improves resistance to corrosion, dust, and moisture.
With its adaptable structure and industrial-grade design, the H10B-SF-1L/SC-MCV-2PG16 is ideal for automation systems, control panels, and complex machinery installations. It supports efficient installation, safeguards internal components, and ensures reliable power and signal transmission, making it a dependable choice for modern industrial connectivity applications.
Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG16 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
