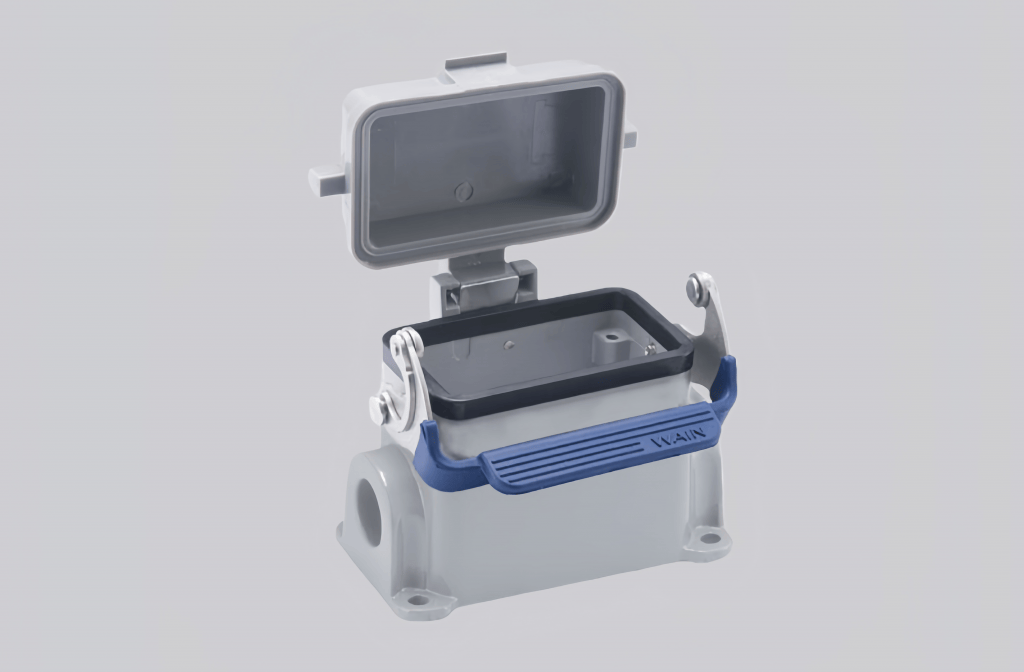

The H10B-SF-1L/SC-CV-2M20 is a heavy-duty connector housing designed for industrial applications that require enhanced protection and flexible cable routing. Its robust die-cast aluminum body provides reliable mechanical strength and durability, ensuring stable performance in environments exposed to vibration and continuous operation.
This model combines a side cable outlet with dual M20 threaded cable entries and an integrated protective cover, allowing multiple cable configurations while safeguarding the connector interface when not in use. The single locking mechanism ensures secure and stable mating, while the surface treatment improves resistance to corrosion, dust, and moisture in demanding conditions.
With its functional structure and industrial-grade design, the H10B-SF-1L/SC-CV-2M20 is well suited for automation systems, control panels, and complex machinery installations. It supports efficient installation, protects internal components, and ensures reliable power and signal transmission, making it a dependable solution for modern industrial connectivity applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Sealed lower housing |
| Housing Overview | Plastic cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | M20 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
