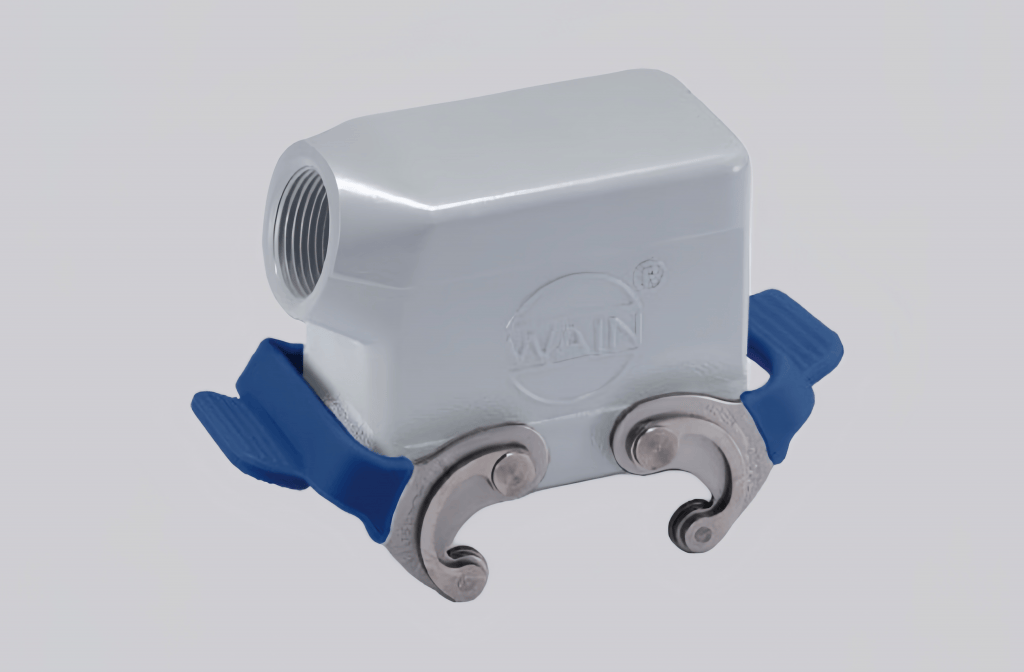

The H10B-SE-2L/SC-M25 is designed for industrial connector systems that require side-entry cable routing with enhanced connection stability. Its configuration allows efficient guidance of M25 cables while supporting compact installation in equipment with limited space. The dual locking structure provides reliable mechanical retention and consistent performance during operation.
The housing is manufactured from die-cast aluminum, offering a robust enclosure suitable for harsh industrial environments. A powder-coated finish in RAL 7037 field gray improves resistance to corrosion, abrasion, and external mechanical stress. Integrated sealing elements assist in protecting internal connections from dust and moisture ingress.
The elastic metal interlocking mechanism, reinforced with stainless steel and TPR components, enhances durability and long-term mechanical reliability. Well suited for automation systems, electrical cabinets, and industrial machinery, the H10B-SE-2L/SC-M25 delivers efficient cable management, strong enclosure protection, and dependable functionality for heavy-duty connector applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Side outlet |
| Locking type | Dual lock |
| Thread | M25 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel + TPR |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ ~ +125℃ |
| Protection rating | IP65 |
