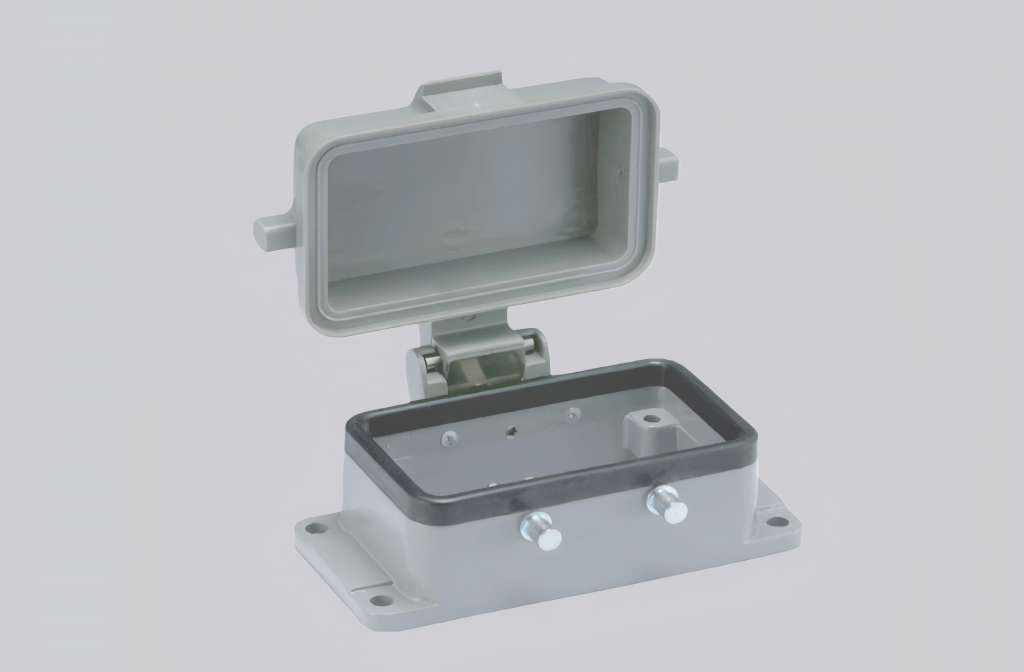

H10B-BK-4B-MCV is a cable butting lower housing designed for industrial connector applications that require secure cable termination and enhanced strain relief. With its standard 10B size and compact structure, it is suitable for automation equipment, control cabinets, and industrial machinery where reliable connections and flexible wiring are essential.
The housing is manufactured from high-quality die-casting aluminum, providing excellent mechanical strength, impact resistance, and durability in demanding industrial environments. Its powder-coated surface in RAL 7037 field gray offers effective corrosion protection and a professional industrial appearance. A robust locking structure ensures stable mating and dependable performance, even under vibration and continuous operation.
Equipped with a metal cable clamp (MCV), the H10B-BK-4B-MCV provides strong strain relief and secure cable fixation, improving overall connection reliability. The integrated sealing system helps protect against dust and environmental influences, ensuring long service life and stable performance in harsh industrial applications.

Technical Data
| Series | Classic regular housing |
| Specifications | 10B |
| Housing type | Unsealed cover |
| Housing Overview | Metal cap |
| Outgoing method | Bottom outlet |
| Locking type | Dual lock |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Galvanized iron |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃…+125℃ |
| Protection rating | IP65 |
