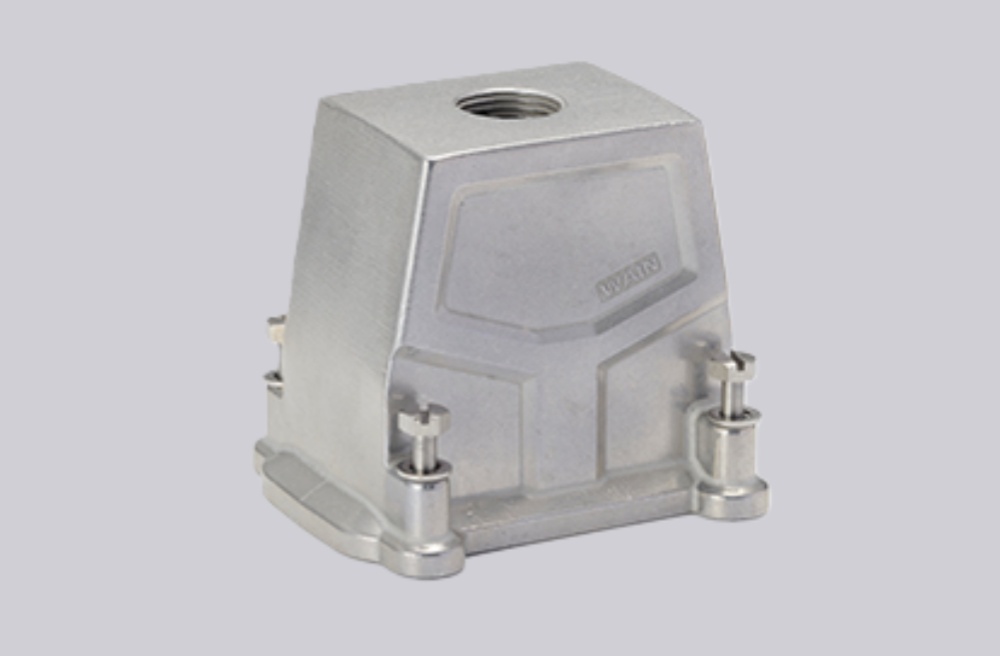

The EMC.W10B-TEH-4S-M20 is a robust industrial metal housing designed for secure cable connections. Its surface-mounted upper housing with a bottom outlet allows flexible installation in compact spaces.
Constructed from durable die-cast aluminum with a powder-coated finish, it provides excellent resistance to corrosion, mechanical impact, and environmental wear. The dual-lock mechanism ensures safety and prevents accidental disconnections.
Equipped with an M20 thread and NBR seals, it offers reliable protection against dust and moisture. UL94 V0 flame retardant rated and suitable for -40℃ to +125℃, it is ideal for industrial automation, machinery, and outdoor electrical applications.

Technical Data
| Series | EMC metal housing |
| Specifications | 10B |
| Housing type | Surface mounting upper housing |
| Outgoing method | Top outlet |
| Locking type | Screw locking |
| Thread | M20 |
| Housing material | Die casting aluminum |
| Housing color | Original color |
| Surface treatment | Passivation |
| Interlocking method | Bolted connection |
| Seals | NBR |
| Flame retardant rating (UL94) | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP68/IP69K |
